1825 E- Giant

Similar to the 1820 E. The "plug-in" mechanism for the loading funnel (as with the 1820E) is sometimes installed - or missing. In order to achieve enough traction the wheel underneath the drive box is rubber-ring covered. This layout has a different loading ramp, a hook and a palette instead of a clam. It is anticipated that other different loading ramps were available. The box is the ame as with the 1820 - simply a "1825 tag" was glued onto the original label. Even the inner cardboard is the same.

Novelty 1966.

Seize: 525 x 405 x 190 mm

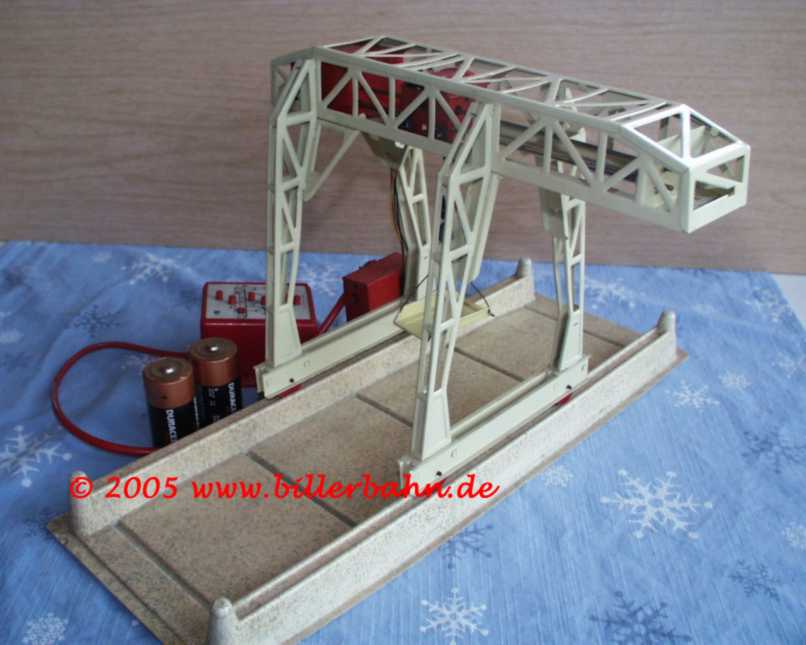

The goods giant from both sides

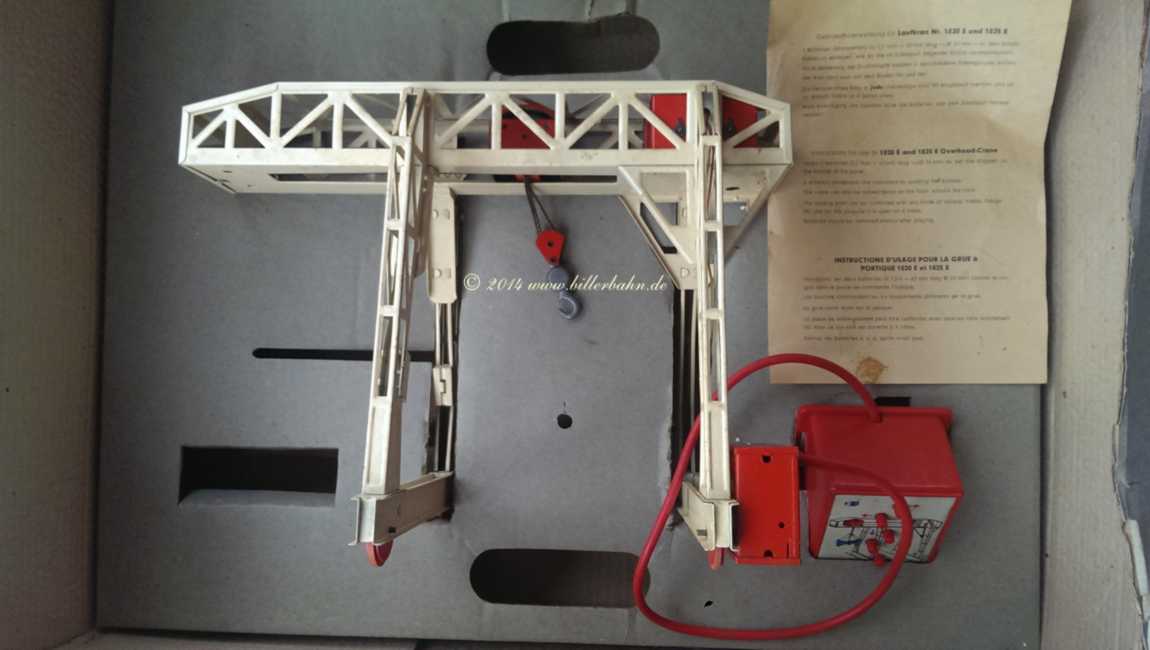

as sold in 1966

 the control panel layout

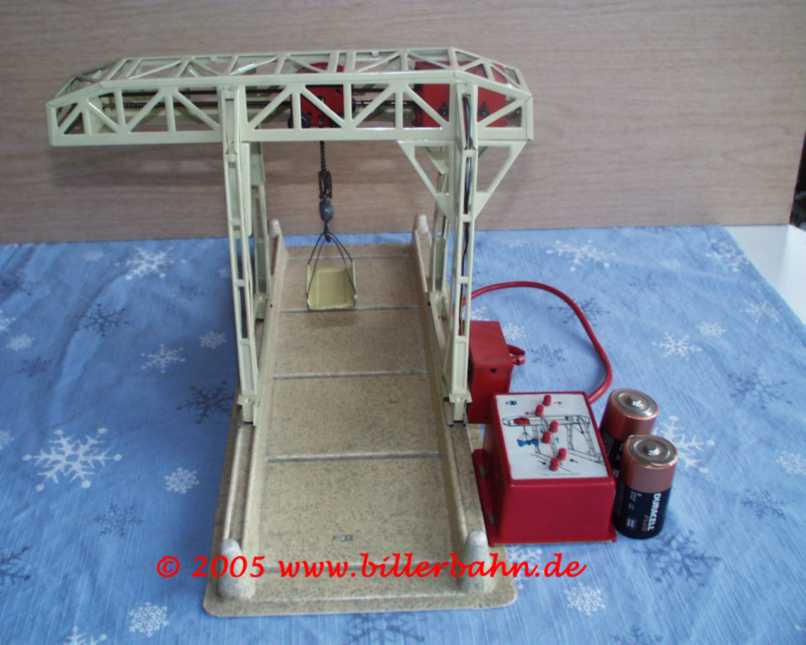

the "goods" giant

 from the other side as sold in 1966 lid of the 1820 and 1825 box'

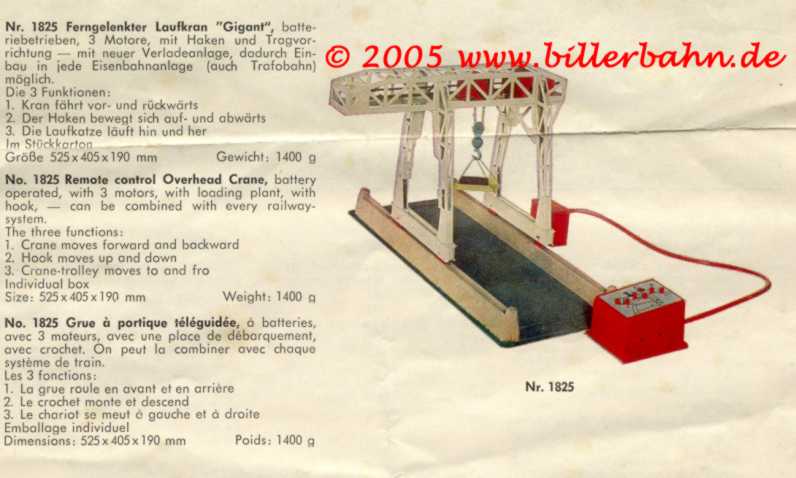

differences in transverser drives - 1820 E and 1825 E The complete layout as shown in a 1966 leaflet The "glued-onto" Label "How to handle..." - also for the 1820 E
Tin and plastic motors as shown in a leaflet the Label how to handle the 1820 E and 1825 E

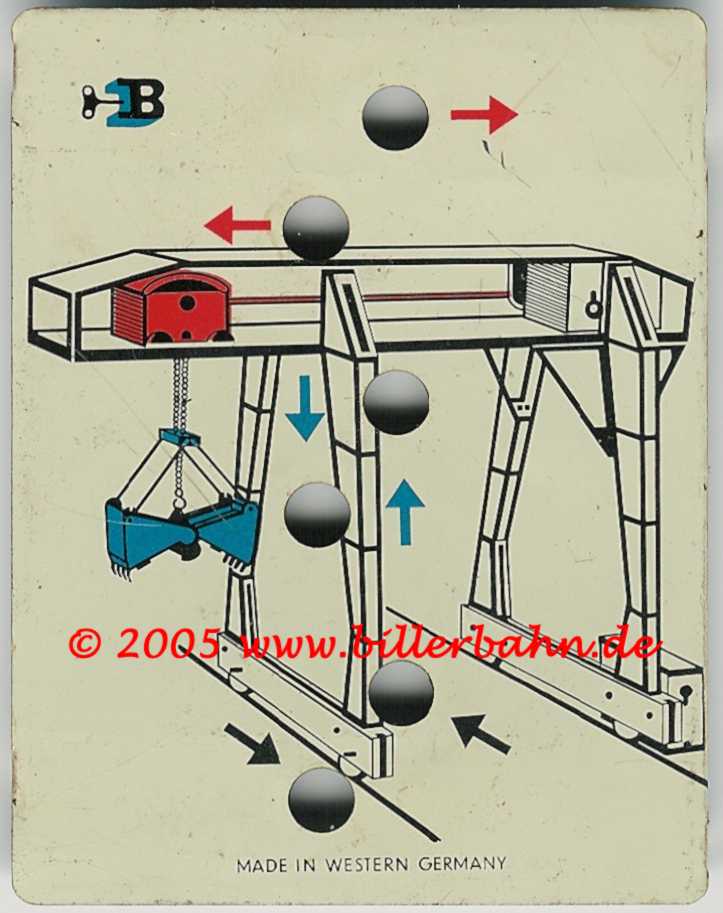

the Control Panel un-punched tin-plate for 72 remote control boxes. These were used for the 1820 and 1830 Giants as well. Dated DEC-19-1963

der Decel vom Schaltpult

the ControlPanel

 unpunched
